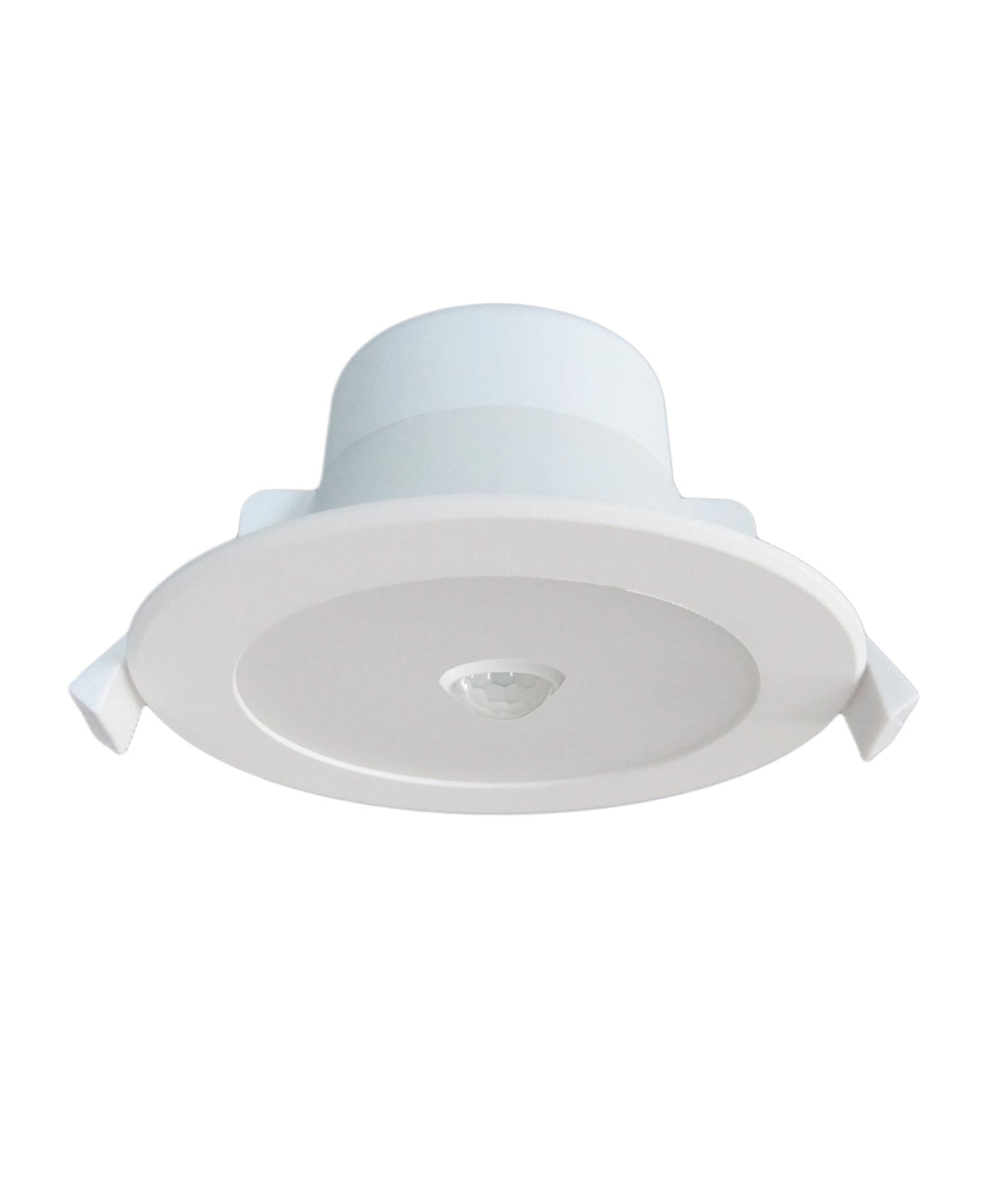

NOVATRIS: LED Tri-CCT Motion Sensor Recessed Downlight IP44

• Input voltage: 220-240V 50Hz
• Inbuilt constant current driver included
• Housing & heatsink: plastic & aluminium
• LED chips: SMD2835
• Colour temperature changeable: 3000K/ 4000K/ 5000K

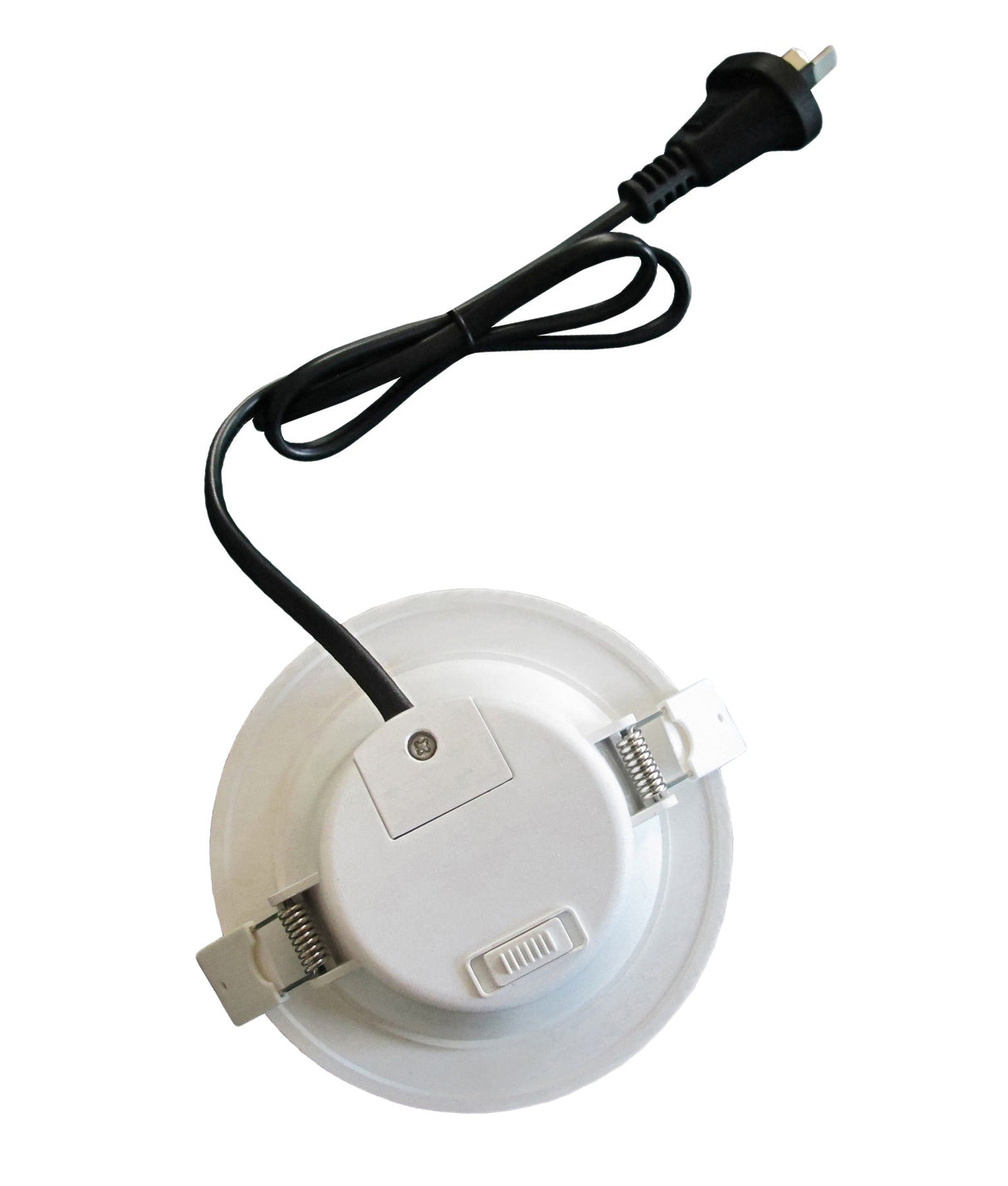

• Rear switch
• Power factor: 0.9
• CRI: ???80

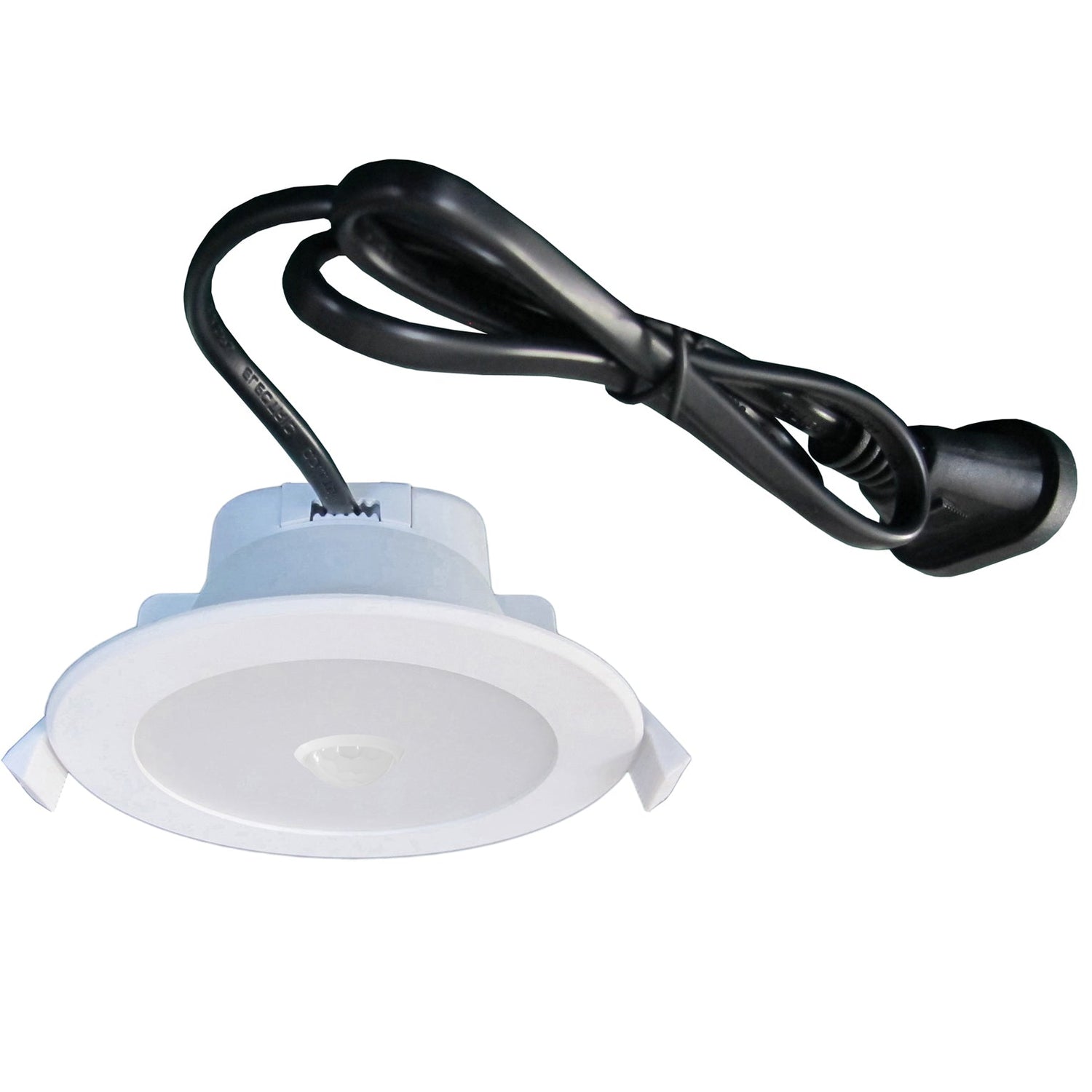

• Flex & plug: 1.0m
• Ambient temperature: -20 to 40??C
• Not suitable for dimming
• Suitable for 2-way switching
• IP44
• Double insulated
• IC-4 rated
• Warranty:??3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Sensor Technical Spec:

• Sensor type: PIR
• Wattage / power consumption: <0.5W
• Installation height: 1.8-2.5m
• Detection angle: 360??
• Motion detection speed: 1.5m/s
• Time delay: 70??10s
• UV resistant: Yes
• Manual override: No

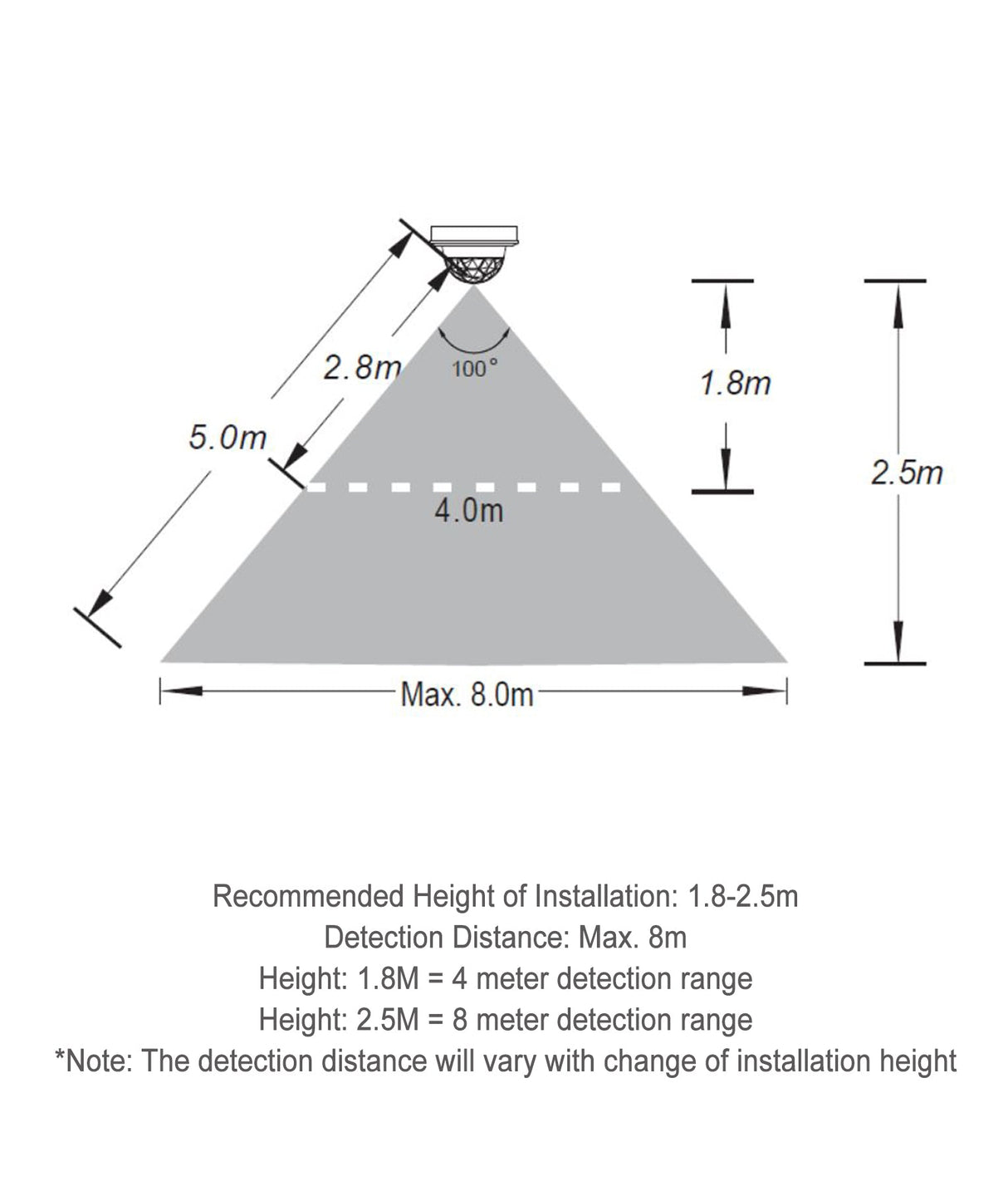

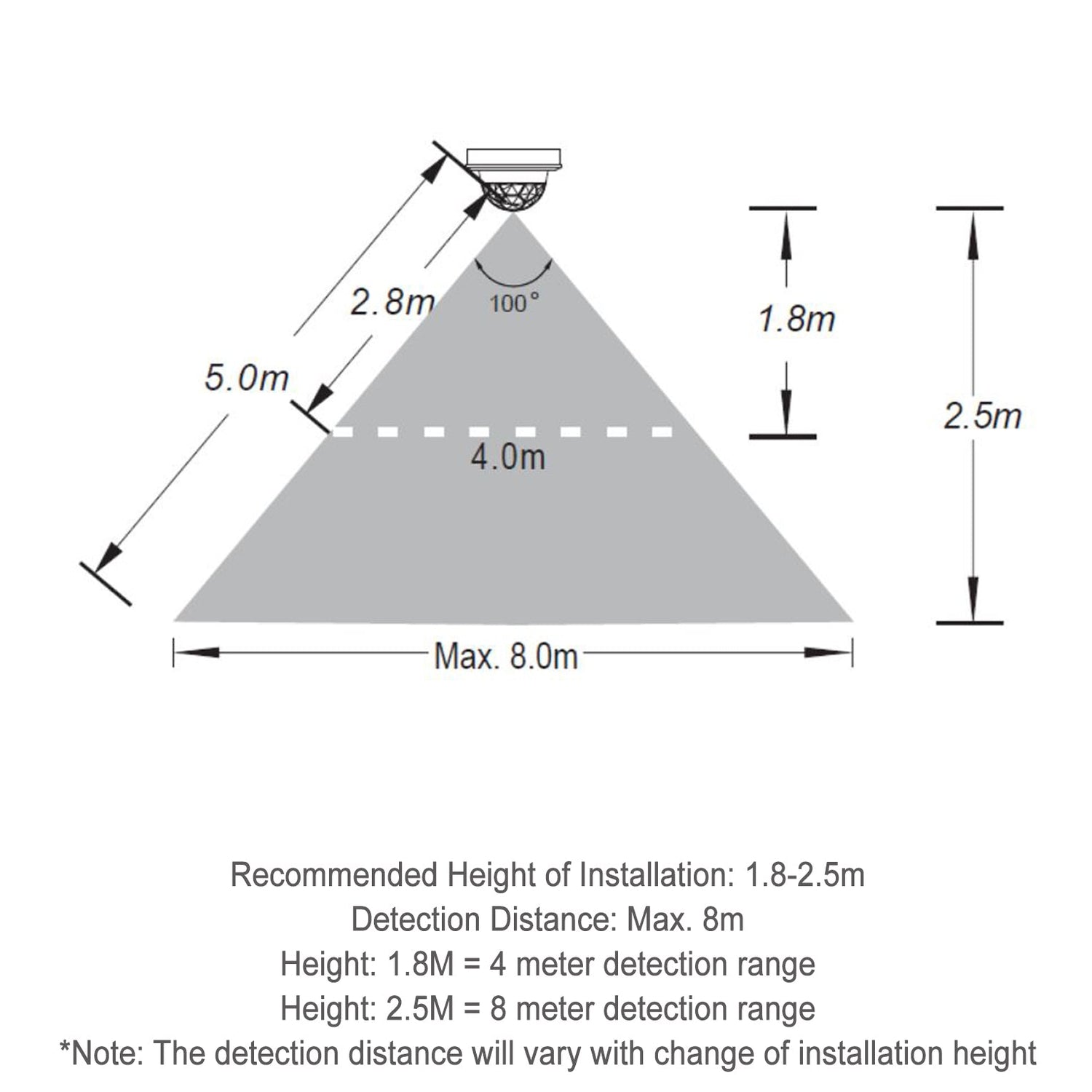

• Recommended Height of Installation: 1.8-2.5m
• Detection Distance: Max. 8m
• Height: 1.8M = 4 meter detection range
• Height: 2.5M = 8 meter detection range
• *Note:??The detection distance will vary with change of installation height
